At the point where ease of use meets high performance
3-phase 200V | 0.4 - 55kW |
---|---|
3-phase 400V | 0.75 - 315kW |
You should download this manual and carefully read it when using the STO function for functional safety.
● Available
Applicable motor (kW) | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 | 315 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3-phase 200 V (ND rating) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||
3-phase 400 V (ND rating) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
(Note) The applicable motor refers to Hitachi standard 3-phase motor (4-pole).
To use other motors, be sure to prevent the rated motor current (50Hz) from exceeding the rated output current of the inverter.
VLD (Very light duty): | 110% 60sec, 120% 3sec |
LD (Light duty): | 120% 60sec, 150% 3sec |
ND (Normal duty): | 150% 60sec, 200% 3sec |
ND Rating Code | Model name | VLD (Very light duty) |
LD (Light duty) |
ND (Normal duty) |
|||
---|---|---|---|---|---|---|---|

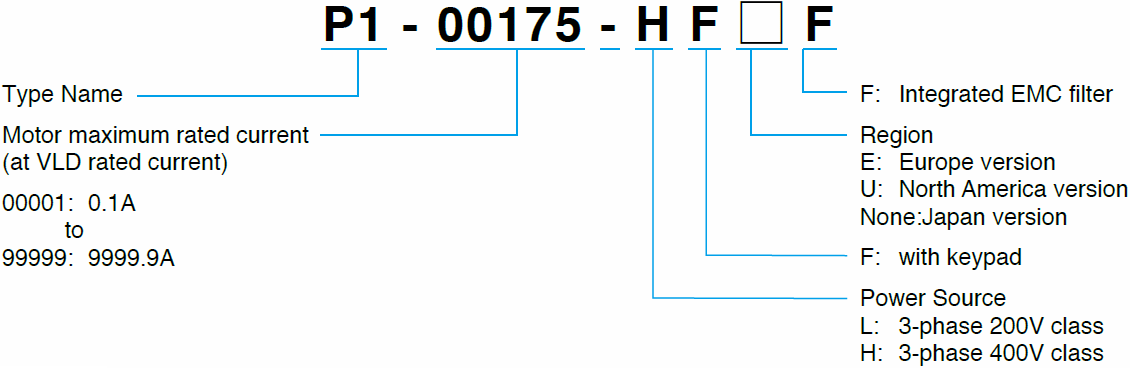

P1-☐☐☐-LF☐F | Motor capacity (kW(HP)) (4pole) | Rated current (A) | Motor capacity (kW(HP)) (4pole) | Rated current (A) | Motor capacity (kW(HP)) (4pole) | Rated current (A) | |
004 | 00044 | 0.75 (1) | 4.4 | 0.75 (1) | 3.7 | 0.4 (1/2) | 3.2 |
007 | 00080 | 1.5 (2) | 8.0 | 1.5 (2) | 6.3 | 0.75 (1) | 5.0 |
015 | 00104 | 2.2 (3) | 10.4 | 2.2 (3) | 9.4 | 1.5 (2) | 8.0 |
022 | 00156 | 3.7 (5) | 15.6 | 3.7 (5) | 12.0 | 2.2 (3) | 11.0 |
037 | 00228 | 5.5 (7.5) | 22.8 | 5.5 (7.5) | 19.6 | 3.7 (5) | 17.5 |
055 | 00330 | 7.5 (10) | 33 | 7.5 (10) | 30 | 5.5 (7.5) | 25 |
075 | 00460 | 11 (15) | 46 | 11 (15) | 40 | 7.5 (10) | 32 |
110 | 00600 | 15 (20) | 60 | 15 (20) | 56 | 11 (15) | 46 |
150 | 00800 | 18.5 (25) | 80 | 18.5 (25) | 73 | 15 (20) | 64 |
185 | 00930 | 22 (30) | 93 | 22 (30) | 85 | 18.5 (25) | 76 |
220 | 01240 | 30 (40) | 124 | 30 (40) | 113 | 22 (30) | 95 |
300 | 01530 | 37 (50) | 153 | 37 (50) | 140 | 30 (40) | 122 |
370 | 01850 | 45 (60) | 185 | 45 (60) | 169 | 37 (50) | 146 |
450 | 02290 | 55 (75) | 229 | 55 (75) | 210 | 45 (60) | 182 |
550 | 02950 | 75 (100) | 295 | 75 (100) | 270 | 55 (75) | 220 |
ND Rating Code | Model name | VLD (Very light duty) |
LD (Light duty) |
ND (Normal duty) |
|||
---|---|---|---|---|---|---|---|
P1-☐☐☐-HF☐F | Motor capacity (kW(HP)) (4pole) | Rated current (A) | Motor capacity (kW(HP)) (4pole) | Rated current (A) | Motor capacity (kW(HP)) (4pole) | Rated current (A) | |
007 | 00041 | 1.5 (2) | 4.1 | 1.5 (2) | 3.1 | 0.75 (1) | 2.5 |
015 | 00054 | 2.2 (3) | 5.4 | 2.2 (3) | 4.8 | 1.5 (2) | 4.0 |
022 | 00083 | 3.7 (5) | 8.3 | 3.7 (5) | 6.7 | 2.2 (3) | 5.5 |
037 | 00126 | 5.5 (7.5) | 12.6 | 5.5 (7.5) | 11.1 | 3.7 (5) | 9.2 |
055 | 00175 | 7.5 (10) | 17.5 | 7.5 (10) | 16 | 5.5 (7.5) | 14.8 |
075 | 00250 | 11 (15) | 25 | 11 (15) | 22 | 7.5 (10) | 19 |
110 | 00310 | 15 (20) | 31 | 15 (20) | 29 | 11 (15) | 25 |
150 | 00400 | 18.5 (25) | 40 | 18.5 (25) | 37 | 15 (20) | 32 |
185 | 00470 | 22 (30) | 47 | 22 (30) | 43 | 18.5 (25) | 39 |
220 | 00620 | 30 (40) | 62 | 30 (40) | 57 | 22 (30) | 48 |
300 | 00770 | 37 (50) | 77 | 37 (50) | 70 | 30 (40) | 61 |
370 | 00930 | 45 (60) | 93 | 45 (60) | 85 | 37 (50) | 75 |
450 | 01160 | 55 (75) | 116 | 55 (75) | 105 | 45 (60) | 91 |
550 | 01470 | 75 (100) | 147 | 75 (100) | 135 | 55 (75) | 112 |
750 | 01760 | 90 (125) | 176 | 90 (125) | 160 | 75 (100) | 150 |
900 | 02130 | 110 (150) | 213 | 110 (150) | 195 | 90 (125) | 180 |
1100 | 02520 | 132 (175) | 252 | 132 (175) | 230 | 110 (150) | 217 |
1320 | 03160 | 160 (220) | 316 | 160 (220) | 290 | 132 (175) | 260 |
1600 | 03720 | 185(250) | 372 | 185(250) | 341 | 160(220) | 310 |
1850 | 04320 | 200(270) | 432 | 200(270) | 395 | 185(250) | 370 |
2000 | 04860 | 220(300) | 486 | 220(300) | 446 | 200(270) | 405 |
2200 | 05200 | 250(335) | 520 | 250(335) | 481 | 220(300) | 450 |
2500 | 05500 | - | - | 280(380) | 550 | 250(335) | 500 |
3150 | 06600 | - | - | 355(450) | 660 | 315(400) | 600 |
