At the point where ease of use meets high performance

Dimensions

Open all

Open the details

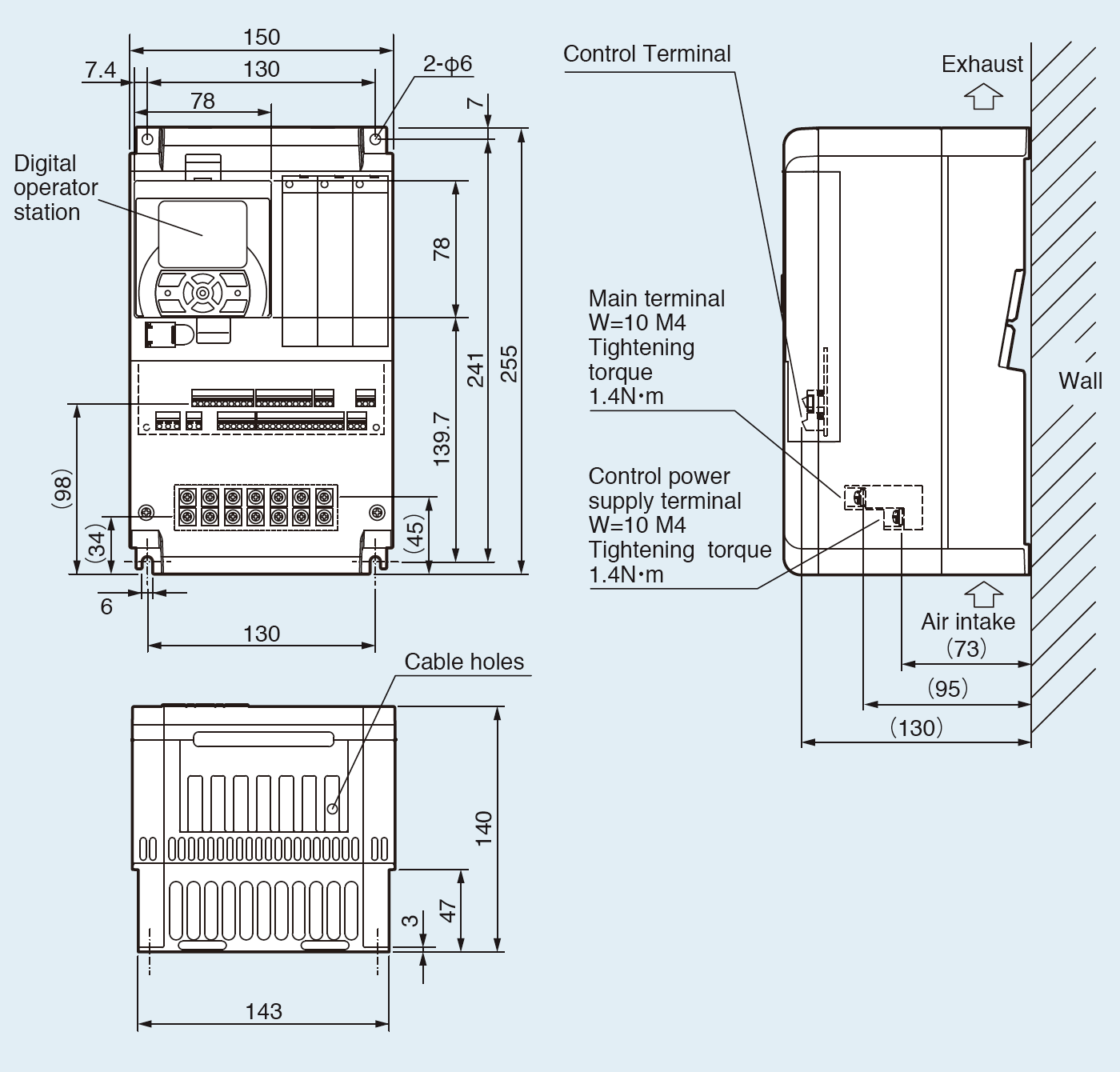

P1-00044-LF☐F - 00228-LF☐F / P1-00041-HF☐F - 00126-HF☐F

P1-00044-LF☐F - 00228-LF☐F / P1-00041-HF☐F - 00126-HF☐F

Close the details

Open the details

P1-00330-LF☐F, P1-00460-LF☐F / P1-00175-HF☐F, P1-00250-HF☐F

P1-00330-LF☐F, P1-00460-LF☐F / P1-00175-HF☐F, P1-00250-HF☐F

Close the details

Open the details

P1-00600-LF☐F / P1-00310-HF☐F

P1-00600-LF☐F / P1-00310-HF☐F

When using P1-00600-LFF with LD/VLD rating, the dimension D increases by 15mm.

Close the details

Open the details

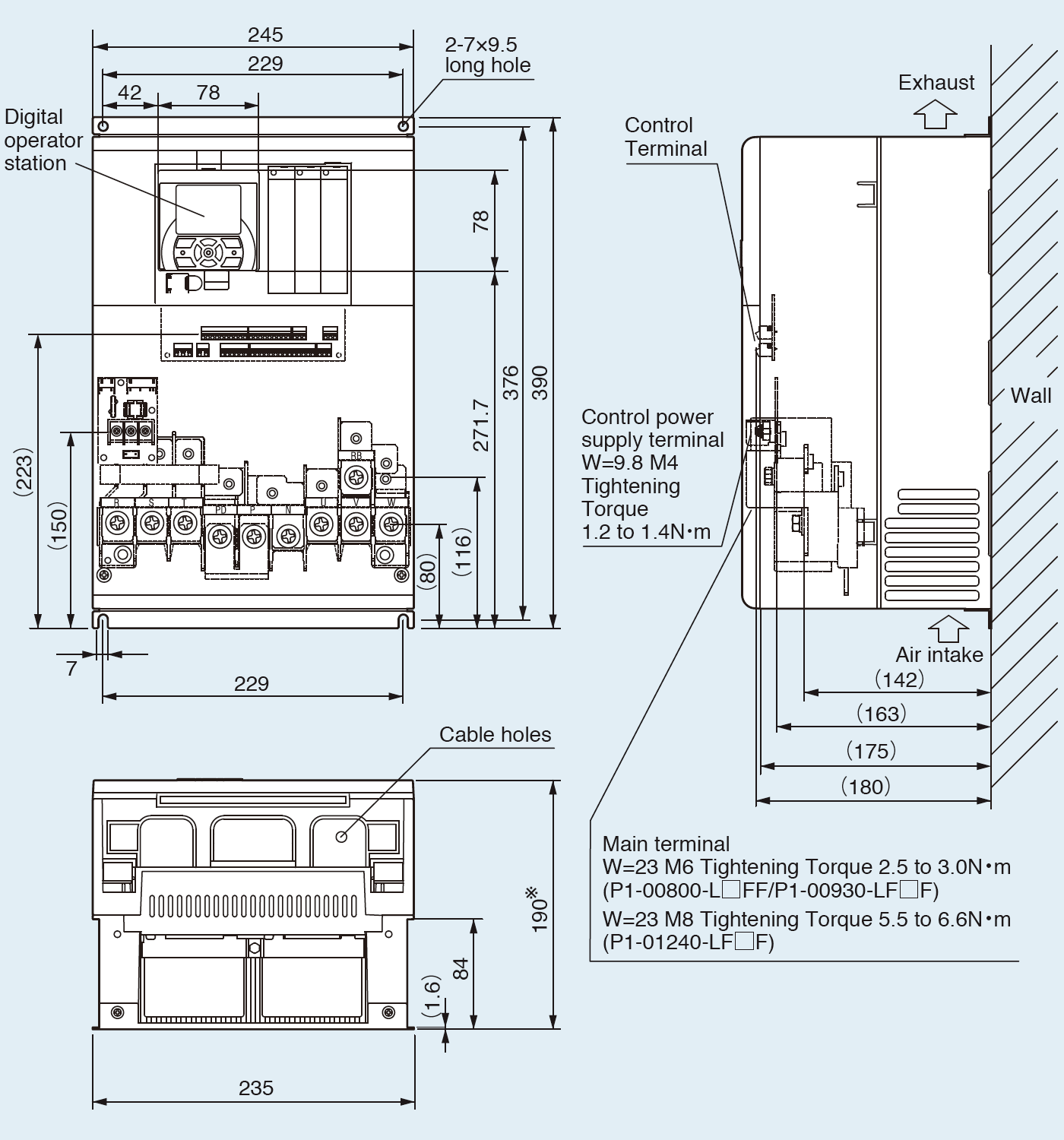

P1-00800-LF☐F, P1-00930-LF☐F, P1-01240-LF☐F

P1-00800-LF☐F, P1-00930-LF☐F, P1-01240-LF☐F

When using P101240-LFF with VLD rating, the dimension D increases by 10mm.

Close the details

Open the details

P1-00400-HF☐F, P1-00470-HF☐F, P1-00620-HF☐F

P1-00400-HF☐F, P1-00470-HF☐F, P1-00620-HF☐F

Close the details

Open the details

P1-01530-LF☐F / P1-00770-HF☐F

P1-01530-LF☐F / P1-00770-HF☐F

Close the details

Open the details

P1-01850-LF☐F, P1-02290-LF☐F /
P1-00930-HF☐F, P1-01160-HF☐F, P1-01470-HF☐F

P1-01850-LF☐F, P1-02290-LF☐F / P1-00930-HF☐F, P1-01160-HF☐F, P1-01470-HF☐F

Close the details

Open the details

P1-02950-LF☐F

P1-02950-LF☐F

Close the details

Open the details

P1-01760-HF☐F, P1-02130-HF☐F

P1-01760-HF☐F, P1-02130-HF☐F

Close the details

Open the details

P1-02520-HF☐F, P1-03160-HF☐F

P1-02520-HF☐F, P1-03160-HF☐F

Close the details
