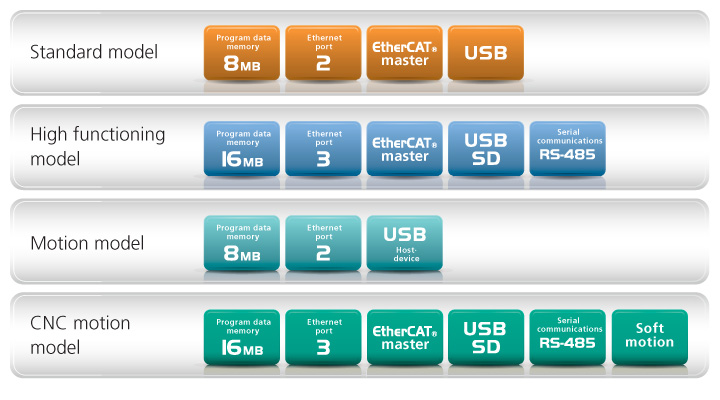

CPU modules that can be selected to cater to your applications

CPU modules that can be selected to cater to your applications

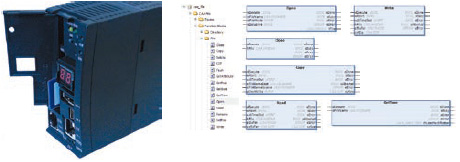

SD card for large capacity data logging
(Full function model, CNC motion model)

The SD card can be mounted on the CPU model, which makes it possible to easily log the data generated on the site (Function blocks for file access are available.)

SD card for large capacity data logging (Full function model, CNC motion model)

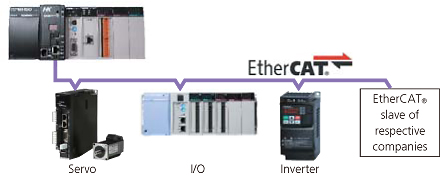

EtherCAT® master & SoftMotion (The EtherCAT® master function is incorporated into all models; the SoftMotion function is incorporated into the Motion model and CNC motion model.)

The EtherCAT® master function and motion control function are incorporated into the LAN port of the CPU module. A combined use of an EtherCAT® slave beside servo is possible (inverters, IO terminals, and so on.)

EtherCAT® master & SoftMotion

Supporting function blocks for PLC open compliant motion control (Motion model, CNC motion model)

PLC open | motion control

From PTP positioning with a single axis and interpolation control and synchronization control of electronic cam to speed control and torque control, various functions are possible through the combined use of FBs.

Reduction in maintenance costs (all models)

No fan

The mechanical mechanism for consumables is not adopted for CPU modules.

No Battery

Nonvolatile memory is adopted for program memory and data memory. Machine production records are stored without batteries. Even if power is turned off due to the unexpected outage, important programs and data will be protected.

* To maintain calendar and clock data, batteries are required.
