Submersible Motor : Water Tight Insulated-Wire Type

For Municipal water service, Industrial irrigation building water supply.

Motor : Submersible Motor : Water Tight Insulated-Wire Type

Motor
Size		 2P 4P
Down Thrust Up Thrust Down Thrust Up Thrust
lbs kg lbs kg lbs kg lbs kg
6" 5 - 30HP 3,500 1,590 300
*(450)		 136
*(200)		 — — — —
6" 40- 60HP 5,000 2,270 300
*(450)		 136
*(200)		 — — — —
8" 10,000
**(5,000)		 4,540
**(2,270)		 1,000
*(1,500)		 450
*(680)		 10,000
**(5,000)		 4,540
**(2,270)		 1,000
*(1,500)		 450
*(680)
10" 10,000 4,540 1,000 450 10,000 4,540 1,000 450
12" 10,000 4,540 1,000 450 10,000 4,540 1,000 450
14" — — — — 10,000 4,540 1,000 450

Note

*1
Thrust ratings showed are continuous except for values marked*.
*2
*Momentary rating (3minutes Max).
*3
**8" Motor-6" Flange when using stainless steel bolts. has a thrust values of 5,000 lbs. A thrust value of 10,000 lbs. can be obtained using grade 8 heat treated stainless steel bolts.

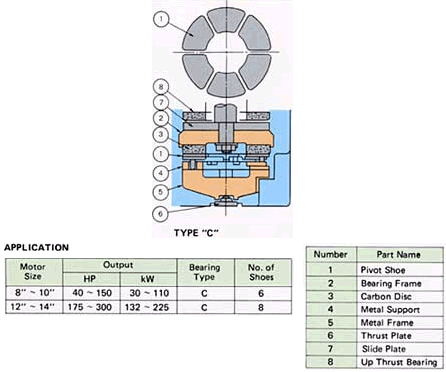

High thrust bearing

High thrust bearing

Insulation

Insulation
