Size and Weight

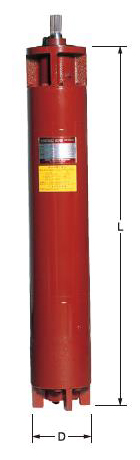

Dimensions

2POLE

Motor Size Output D inch(mm) L Net Weight
HP kW inch mm lbs. kg
8" 40 30 7.52(191) 44.09(42.91) 1120(1090) 331(320) 150(145)
50 37 46.44(45.28) 1180(1150) 353(342) 160(150)
60 45 49.19(48.03) 1250(1220) 375(364) 170(165)
75 55 53.15 1350 397 180
100 75 58.27 1480 441 200
125 90 58.27 1480 450 204
150 110 66.14 1680 518 235
10" 175 132 8.52(216.5) 63.78 1620 728 330
200 150 69.68 1770 816 370
250 185 79.53 2020 970 440
12" 300 225 10.53(267.5) 78.75 2000 1477 670
*
(      ) 6inch Flange

4POLE

Motor Size Output D inch(mm) L Net Weight
HP kW inch mm lbs. kg
8" 7.5 5.5 7.52(191) 37.40(36.22) 950(920) 287(276) 130(125)
10 7.5 37.40(36.22) 950(920) 293(282) 133(128)
15 11 41.34(40.16) 1050(1020) 326(315) 148(143)
20 15 41.34(40.16) 1050(1020) 333(322) 151(146)
25 18.5 44.09(42.91) 1120(1090) 355(344) 161(156)
30 22 44.09(42.91) 1120(1090) 362(351) 164(159)
10" 40 30 8.52(216.5) 49.21 1250 496 225
50 37 49.21 1250 507 230
60 45 59.84 1520 573 260
75 55 59.84 1520 584 265
100 75 69.68 1770 743 330
125 90 69.68 1770 743 337
12" 150 110 10.53(267.5) 56.30 1430 882 400
175 132 61.02 1550 992 450
200 150 68.11 1730 1146 520
14" 250 185 12.60(320.0) 68.31 1735 1720 780
300 225 76.18 1935 1962 890
*
(      ) 6inch Flange

Cable Size and Type

2POLE 200 inch(5m)

Lead Wire Standard Length(Round 1 Standard Conductor)

Motor size OUTPUT 460V 415V 400V 380V
HP kW Lead Wire Size Cable Dia
mm2 AWG inch mm2
8" 40-75 30-55 8 #8 0.362 9.2
100-125 75-90 14 #6 0.433 11.0
150 110 22 #4 0.531 13.5
10" 175-250 132-185 30 #2 0.591 15.0
12" 300 225 60 #2/0 0.768 19.5

4POLE 200 inch(5m)

Lead Wire Standard Length(Round 1 Standard Conductor)

Motor size OUTPUT 460V 415V 400V 380V
HP kW Lead Wire Size Cable Dia
mm2 AWG inch mm2
8" 7.5-30 5.5-22 8 #8 0.362 9.2
10" 40-50 30-37 8 #8 0.362 9.2
60-75 45-55 14 #6 0.433 11.0
100-125 75-90 30 #2 0.591 15.0
12" 150-200 110-150 30 #2 0.591 15.0
14" 250-300 185-200 60 #2/0 0.768 19.5

TYPE OF LEAD WIRE - 600V CLASS

Ethylenepropylene rubber insulated chloroprene cabtyre cable.
