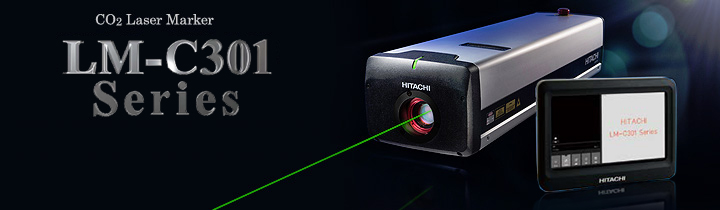

CO2 laser marker LM-C301 Series

Hitachi new laser marker LM-C301 Series meets a wide variety of industrial coding requirements

Hitachi has provided for a high-level marking system solutions in a wide range of production lines. And now, the LM-C301 Series CO2-based laser marker is developed with Hitachi's experiences and know-hows.
Simple and intuitive operation
Stable operation by new cooling system is realized.
In protection structure, IP54 is equipped as standard.

Introduction of Some of the Application Example.

Specifications

Specifications
Hitachi Series LM-C301S (Without Beam Expander) LM-C301P (With a Beam Expander)
Model LM-C331S LM-C311P LM-C331P
Laser Technology CO2 Laser, Class 4 laser
Laser Power & Laser Wavelength 30 W
10.6 µm (e. g. Paper, Cardboard, Glass)
10 W
10.6 µm (e. g. Paper, Cardboard, Glass)
30 W
10.6 µm (e. g. Paper, Cardboard, Glass)
25 W
10.2 µm (e. g. OPP, PP, PE)
25 W
10.2 µm (e. g. OPP, PP, PE)
20 W
9.3 µm (e. g. PET)
20 W
9.3 µm (e. g. PET)
Marking Area (mm) *1 40 × 40
60 × 60 *2
75 × 75
100 × 100
150 × 150
200 × 200
250 × 250
40 × 40
60 × 60
75 × 75
100 × 100 *2
150 × 150
200 × 200
250 × 250
Guide Laser, Pointer (Options) Red semiconductor, Wavelength 655 nm, Class 2 Laser
User Interface Touch Screen (Option) / Laser Marker Application PC Software (Option)
Shutter Electromechanical Shutter
Protection IP 54
Weight 22 kg 18 kg 22 kg
Dimension (Width × Height × Depth) 216 × 179 × 747 (mm) 196 × 148 × 728.5 (mm) 216 × 179 × 747 (mm)
Laser Status Indicator Ready (Green) / Marking (Blue) / Alarm (Orange)
Power Supply AC100 to 120 V ± 10 %, AC200 to 240 V ± 10 % (50 / 60 Hz)
Power Consumption 600 VA 300 VA 600 VA
Operating Temperature Range 5 to 40 ℃ (No dew condensation or freezing allowed.)
Operating Humidity Range 35 to 95 % RH (No dew condensation or freezing allowed.)
*1
Vary corresponding lens with the wavelength
*2
Recommended models

Global standards

Conformity to Global standards
CE, UL, c-UL.

CE, UL, c-UL.

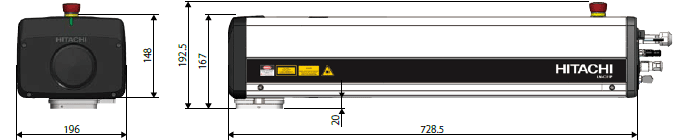

Dimensions of Laser Marker (mm)

LM-C311P

LM-C311P

LM-C331S, LM-C331P

LM-C331S, LM-C331P
