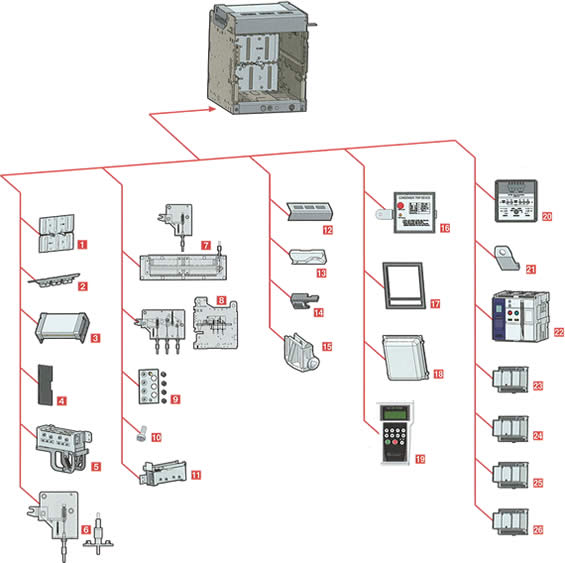

Cradle | |||||
---|---|---|---|---|---|
1 | ST | Safety Shutter | 9 | MIP | Miss Insertion Prevent Device |
2 | Manual Connector | 10 | CMB | Cladle Mounting Block | |
3 | ZAS | Zero Arc Space | 11 | SBC | Shorting “b” Contact |
4 | IB | Insulation Barrier | 12 | SC | Safety Control Cover |
5 | CEL | Cell Switch | 13 | ADM | Automatically Discharge Mechanism |
6 | DI | Door Interlock | 14 | RI | Racking Interlock |
7 | MOC | Mechanically Operated Cell Switch | 15 | STL | Safety Shutter Lock |
8 | MI | Mechanical Interlock | |||
Others | |||||
16 | CTD | Condenser Trip Device | 22 | Dummy ACB | |
17 | DF | Door Frame | 23 | UDC | UVT Time Delay Controller |
18 | DC | Dust Cover | 24 | Probus-DP Communication module | |
19 | OT | OCR Tester | 25 | Remote I /O | |
20 | ATS | ATS Controller | 26 | Temperature Alarm | |
21 | LH | Lifting Hook |
Accessories | AKH | AKS | AKN | |
---|---|---|---|---|
SBC | Shorting “b” Contact | ○ | ○ | ○ |
MI | ○ | ○ | ○ | |
ST | ○ | ○ | ○ | |
STL | ○ | ○ | ○ | |
DF | ○ | ○ | ○ | |
MIP | Miss Insertion Prevent Device | ○ | ○ | ○ |
MOC | Mechanical Operated Cell Switch | ○ | ○ | ○ |
CEL | Cell Switch | ○ | ○ | ○ |
DI | Door Interlock | ○ | ○ | ○ |
ZAS | ● | ○ | ||
SC | ● | ● | ● ○** | |
CMB | Cradle Mounting Block* | ○ | ○ | ○ |
RI | ○ | ○ | ○ | |
PL | ● | ● | ● | |
IB | ● | ○ | ○ | |
UDC | ○ | ○ | ○ | |
ADP | Compatible Adapter | ○ | ○ | ○ |
● : Default ○ : Option
Accessories | AKH | AKS | AKN | |
---|---|---|---|---|
RPH | Reverse Phase ACB | ○ | ○ | ○ |
DUM | Dummy ACB | ○ | ○ | ○ |
VAD | Various Connection Type | ○ | ○ | ○ |
RCO | Remote I /O | ○ | ● | ● |
PC | Profibus-DP comm. module | ● | ○ | ○ |
● : Default ○ : Option
