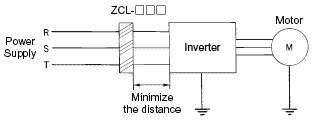

Electrical noise interference may occur on nearby equipment such as a radio receiver. This magnetic choke filter helps reduce radiated noise (can also be used on output)
ZCL-B40 (for small capacity model)
ZCL-A (No matter the capacity of the inverter and the motor)
ZCL-B75 and ZCL-B95 (For mass model)
Inverter maximum application motor class(kW) | 200V Class | 400V Class | ||||||
---|---|---|---|---|---|---|---|---|
Input side | Output side | Input side | Output side | |||||
Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | |
0.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
0.4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
0.75 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
1.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
2.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
3.7 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
5.5 | Out side application | Out side application | 1 | 4 | 1 | 4 | ||
7.5 | 1 | 4 | 1 | 4 |
Inverter maximum application motor class(kW) | 200V Class | 400V Class | ||||||
---|---|---|---|---|---|---|---|---|
Input side | Output side | Input side | Output side | |||||
Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | Q'ty | Number of penetration | |
0.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
0.4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
0.75 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
1.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
2.2 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
3.7 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
5.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
7.5 | 1 | 4 | 1 | 4 | 1 | 4 | 1 | 4 |
11 | 1 | 3 | 1 | 3 | 1 | 4 | 1 | 4 |
15 | 1 | 2 | 1 | 2 | 1 | 4 | 1 | 4 |
18.5 | 4 | 1 | 4 | 1 | 1 | 3 | 1 | 3 |
22 | 4 | 1 | 4 | 1 | 1 | 3 | 1 | 3 |
30 | 4 | 1 | 4 | 1 | 1 | 2 | 1 | 2 |
37 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
45 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
55 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
75 | 4 | 1 | 4 | 1 | 4 | 1 | 4 | 1 |
90 | Out side application | 4 | 1 | 4 | 1 | 4 | 1 | |
110 | 4 | 1 | 4 | 1 | 4 | 1 | ||
132 | 4 | 1 | 4 | 1 | 4 | 1 |
