| Item | High-speed printing | Larger Small-size Characters | Micro Characters | |
|---|---|---|---|---|

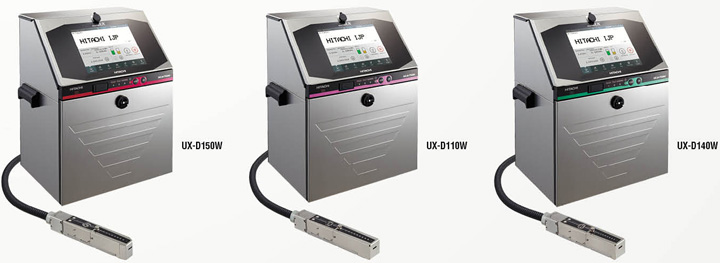

| UX-D150W/S | UX-D110W/S | UX-D140W/S | ||
| Nozzle size | 55µm | 100µm | 40µm | |
| Max. print line number | Up to 4 lines | |||
| Maximum number of print characters | Up to 1,000 characters | |||
| Font (Horizontal × Vertical) |
4 × 5 | ✓ | ||
| 5 × 5 | ✓ | |||
| 5 × 7(8), 9 × 7(8) |
✓ | |||
| 7 × 10 | ✓ | |||
| 11 × 11 | − | ✓(Special Kanji only) | ||
| 12 × 16 | ✓ | |||
| 18 × 24 | ✓ *2 | ✓ | ||
| 24 × 32 | − | ✓ | ||
| Character height | 2-8mm | 3-15mm | 1-5mm | |
| Display & input device | WYSIWYG design Display: TFT LCD (10.4" color), backlight provided Input device: Touch panel, input sound provided |
|||
| Screen language ( 2 languages selectable ) |
English, Special Kanji, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian | |||
| Maximum print rate (Characters per second) (Font 5×5, space 1, 1 line) |
Up to 3,173 | Up to 468 | Up to 3,030 | |
| Standard characters | Alphanumeric (A-Z, a-z, 0-9), symbols (27) and space: Total 90 | |||
| User pattern | 200 patterns each for dot matrix | |||
| Print functions | Calendar, Count, Font mixture, Password | |||
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar | |||
| 2D code printing | Data Matrix (Alphabet: 49 characters/Numerals: 98 characters), QR code*2, Micro QR code | |||
| Message storage capacity | Up to 2,000 messages (Depends on data content) | |||
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON/OFF, Reset), (NPN/PNP Selectable) |
|||
| Output signal | Print in progress or Print complete, Online (NPN/PNP Selectable), Print ready, Fault, Warning (NPN Only) | |||
| Data interface | RS-232C at baud rates selectable up to 115,200bps | |||
| Ethernet (Modbus communication) |
IEEE802.3 , 100BASE-T | |||
| External memory | USB for user data storage | |||
| Printhead cable length / angle | 4m (in-line/90 degrees) | |||
| Operating temperature range | 0-40°C (1067K Ink) | 0-35°C (1067K Ink) | ||
| Operating humidity range | 30-90% RH (no condensation) | |||
| Power supply (Automatic voltage selection) |
AC100-120/220-240V±10% 50/60Hz 120VA | |||
| Approval | CE, UL, cUL, C-Tick, FCC, ICES | |||
| Dimensions (Width × Depth × Height) |
400 × 320 × 527 mm | |||
| International protection | IP65 | |||
| Approximate weight | 27kg | |||
- *2
- Please consult your nearest sales representative when "18×24 font" or "QR code" is required with UX-D for High-speed printing.
