Item | Small characters | |||
---|---|---|---|---|

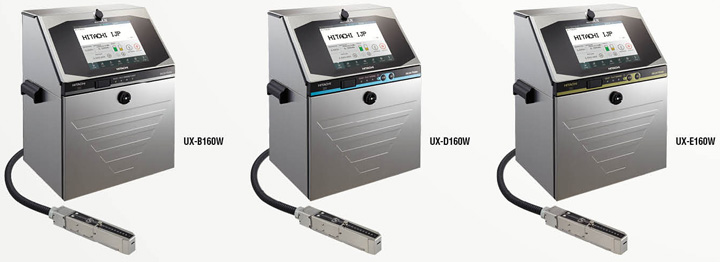

UX-B160W/S | UX-D160W/S | UX-E160W/S | ||
Nozzle size | 65µm | |||
Max. print line number | Up to 3 lines | Up to 6 lines | Up to 6 lines | |
Maximum number of print characters | Up to 240 characters | Up to 240 characters (Option: Up to 1,000 characters) |
Up to 1,000 characters | |
Font (Horizontal × Vertical) |
4 × 5 | ✓ | ✓ | ✓ |
5 × 5 | ✓ | ✓ | ✓ | |
5 × 7(8), 9 × 7(8) |
✓ | ✓ | ✓ | |
7 × 10 | ✓ | ✓ | ✓ | |
11 × 11 | ✓(Special Kanji only) | ✓(Special Kanji only) | ✓(Special Kanji only) | |
10 × 12 | ✓ | ✓ | ✓ | |
12 × 16 | ✓ | ✓ | ✓ | |
18 × 24 | ✓ | ✓ | ✓ | |
24 × 32 | − | ✓ | ✓ | |
30 × 40 | − | ✓ | ✓ | |
36 × 48 | − | ✓ | ✓ | |
Character height | 2 - 10 mm | |||
Display & input device | WYSIWYG design Display: TFT LCD (10.4" color), backlight provided Input device: Touch panel, input sound provided |
|||
Screen language ( 2 languages selectable ) |
English, Special Kanji, Korean, Thai, Vietnamese, German, French, Dutch, Italian,Spanish,Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian | |||
Maximum print rate (Characters per second) (Font 5×5, space 1, 1 line) |
Up to 1,148 (Option: Up to 1,281 *1) |
Up to 1,148 (Option: Up to 2,563 *1) |
Up to 2,296 (Option: Up to 2,563 *1) |
|
Standard characters | Alphanumeric (A-Z, a-z, 0-9), symbols (27) and space : Total 90 | |||
User pattern | 50 patterns each for dot matrix | 200 patterns each for dot matrix (50 patterns for 30×40 and 36×48 fonts) | ||
Print functions | Calendar, Count, Font mixture, Password | |||
Barcode printing | − | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar |
||
2D code printing | − | Data Matrix (Alphabet: 49 characters/Numerals: 98 characters), QR, Micro QR code |
||
Message storage capacity | 150 messages | 300 messages [Option: Up to 2,000messages (Depends on data content)] |
2,000 messages (Depends on data content) |
|
Input signal | Print target detection Rotary encoder pulse (NPN/PNP Selectable) |
Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing,Remote control (Run, Stop, High-voltage ON/OFF, Reset), (NPN/PNP Selectable) | ||
Output signal | Print ready, Fault, Warning (NPN Only) |
Print in progress or Print complete, Online (NPN/PNP Selectable), Print ready, Fault, Warning (NPN Only) | ||
Data interface | Option (RS-232C at baud rates selectable up to 115,200bps) |
RS-232C at baud rates selectable up to 115,200bps | ||
Ethernet (Modbus communication) |
− | IEEE802.3 , 100BASE-T | ||
External memory | USB for user data storage | |||
Printhead cable length / angle | 4m (in-line/90 degrees) | |||
Operating temperature range | 0-50℃ (1067K Ink) | |||
Operating humidity range | 30-90% RH (no condensation) | |||
Power supply (Automatic voltage selection) |
AC100-120/220-240V±10% 50/60Hz 120VA | |||
Approval | CE, UL, cUL, C-Tick, FCC, ICES | CE, C-Tick | ||
Dimensions (Width × Depth × Height) |
400 × 320 × 527 mm | |||
International protection | IP55 | IP65 | ||
Approximate weight | 27kg |
