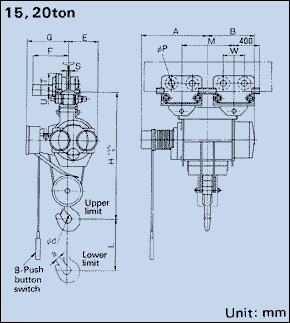

Dimensions : Standard Headroom Type : 15, 20 ton

Model 15M-T55 15HM-T55 20M-T55
Hoist type 15M5 15HM5 20M5
Trolley type 10AT6×2 10AT6×2 10AT6×2
Capacity(ton) 15 20
Approx.
Dimensions(mm)
L 8,000 12,000 12,000
H 1,865 2,010
A 1,060 1,160 1,210
B 750 850 900
E 500 500
G 705 705
M 820 900
W 327 327
Ød 130 165
Øp 200 200
a 86 108
Min. curve Radius(m) Straight Straight
Dimensions with
Respect to l-beam(mm)
S T U F
450 × 175 × 11 62 280 30 524
600 × 190 × 13 77 285 25 532
Approx.weight(kg) 2,340 2,540 2,880

Note

*
Unless otherwise specified, trolley is being assembled so as to meet smudged I-beam size.
