| Model | 7.5M-T55 | 7.5HM-T55 | 10M-T55 | 10HM-T55 | |||||
|---|---|---|---|---|---|---|---|---|---|
| Hoist type | 7.5M5 | 7.5HM5 | 10M5 | 10HM5 | |||||
| Trolley type | 4FT5×2 | 4FT5×2 | 5FT5×2 | 5FT5×2 | |||||
| Capacity(ton) | 7.5 | 10 | |||||||

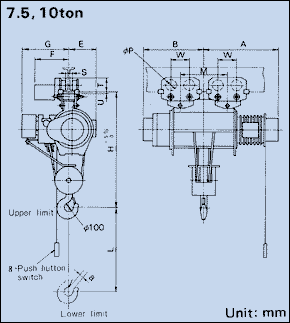

| Approx.dimensions (mm) |
L | 8,000 | 12,000 | 8,000 | 12,000 | ||||
| H | 1,345 | 1,515 | |||||||
| A | 1,075 | 1,150 | 1,075 | 1,150 | |||||
| B | 830 | 905 | 885 | 960 | |||||
| E | 315 | 355 | |||||||
| G | 570 | 590 | |||||||
| M | 560 | 760 | 650 | 786 | |||||
| W | 230/310 (Drive side/Driven side) |
250/330 (Drive side/Driven side) |
|||||||
| Ød | 100 | 100 | |||||||
| Øp | 128 | 156/140 (Drive side/Driven side) |
|||||||
| a | 69 | 69 | |||||||
| Min. curve Radius(m) | Straight | Straight | |||||||
| Dimensions with Respect to l-beam(mm) |
S | T | U | F | S | T | U | F | |
| 450 × 175 × 11 | 102 | 184 | 30 | 453 | 102 | 225 | 30 | 460 | |
| 600 × 190 × 13 | 117 | 189 | 25 | 461 | 117 | 230 | 25 | 468 | |
| Approx.weight(kg) | 930 | 990 | 1,230 | 1,290 | |||||
Note
- *1
- Dimensions W are for the drive side/driven side.
- *2
- Unless otherwise specified, trolley is being assembled so as to meet smudged I-beam size.
