| Model | 1/2M-T65 | 1/2HM-T65 | 1M-T65 | 1HM-T65 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hoist type | 1/2M6 | 1/2HM6 | 1M6 | 1HM6 | |||||||||
| Trolley type | 1/2T5 | 1/2T5 | 1T5 | 1T5 | |||||||||
| Capacity(ton) | 1/2 | 1 | |||||||||||

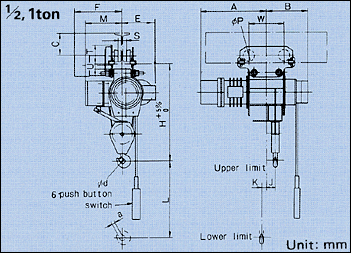

| Approx. dimensions (mm) | L | 6,000 | 12,000 | 6,000 | 12,000 | ||||||||
| H | 740 | 790 | |||||||||||
| A | 485 | 655 | 545 | 715 | |||||||||
| B | 355 | 380 | 350 | 385 | |||||||||
| M | 355 | 345 | |||||||||||
| W | 200/290 | 200/290 | |||||||||||
| K | 20 | 100 | 20 | 90 | |||||||||
| J | 80 | 105 | 85 | 115 | |||||||||
| Ød | 40 | 45 | |||||||||||
| Øp | 96 | 96 | |||||||||||
| a | 21 | 23 | |||||||||||
| Min. curve Radius(m) | 1.3(5.0) | 1.5 | |||||||||||
| Dimensions with Respect to l-beam(mm) |
E | F | S | T | U | C | E | F | S | T | U | C | |
| (150 × 75 × 5.5) | 190 | 361 | 17 | 147 | 53 (85) |
85 | |||||||
| 200 × 100 × 7 | 190 | 374 | 42 | 148 | 52 (42) |
135 | 255 | 374 | 42 | 148 | 47 (42) |
135 | |
| 250 × 125 × 7.5 | 190 | 387 | 67 | 151 | 49 (39) |
185 | 255 | 387 | 67 | 151 | 44 (39) |
185 | |
| 300 × 150 × 11.5 | 255 | 400 | 92 | 160 | 35 (30) |
225 | |||||||
| 450 × 175 × 11 | |||||||||||||
| Approx.weight(kg) | 145 | 155 | 175 | 195 | |||||||||
Note
- *1
- Dimensions W are for the drive side/driven side.
- *2
- Unless otherwise specified, trolley is being assembled so as to meet smudged I-beam size.
- *3
- ( ) dimensions represent dimensions of 1/2 HM6 and 1HM6 (Hoist type).
- *4
- 1/2 ton - When an I-beam (150×75×5.5) is used, the minimum curve radius is 5m.
- *5
- 1/2 ton - When an I-beam (150×75×5.5) is used, 50mm-think shims are necessary between the building and I-beam.
