SINGLE SPEED
| Model Name | 5S | 5SH | |
|---|---|---|---|
| Rated Load | 5t | ||

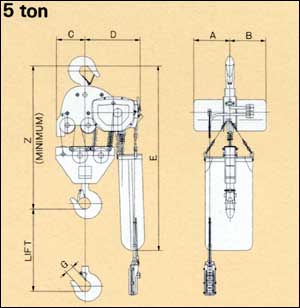

| Dimension(mm) | Z | 895 | |
| A | 216 | ||
| B | 216 | ||
| C | 175 | ||
| D | 340 | ||
| E | 1065 | 1095 | |
| G | 48 | ||
| Approx. Weight (kg) | 88 | 105 | |
SINGLE PHASE MODEL
| Model Name | 5S1 | 5SH1 | |
|---|---|---|---|
| Rated Load | 5t | ||
| Dimension(mm) | Z | 895 | |
| A | 246 | ||
| B | 246 | ||
| C | 175 | ||
| D | 340 | ||
| E | 1065 | 1095 | |
| G | 48 | ||
| Approx. Weight (kg) | 90 | 107 | |
