SINGLE SPEED
| Model Name | 5F | 5FH | |
|---|---|---|---|
| Rated Load | 5t | ||

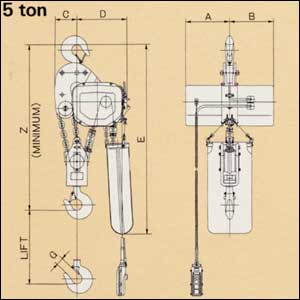

| Dimension(mm) | Z | 1020 | |
| A | 280 | ||
| B | 280 | ||
| C | 145 | ||
| D | 330 | ||
| E | 1295 | 1305 | |
| G | 48 | ||
| Approx. Weight (kg) | 121 | 142 | |
DUAL SPEED
| Model Name | 5FN | 5FNH | |
|---|---|---|---|
| Rated Load | 5t | ||
| Dimension(mm) | Z | 1020 | |
| A | 280 | ||
| B | 330 | ||
| C | 145 | ||
| D | 330 | ||
| E | 1295 | 1305 | |
| G | 48 | ||
| Approx. Weight (kg) | 146 | 167 | |
