Air Circuit Breakers : Dimensions : Draw-out type 4000AF ([2000 — 3200A] AKH / AKN / AKS-20 — 32E)

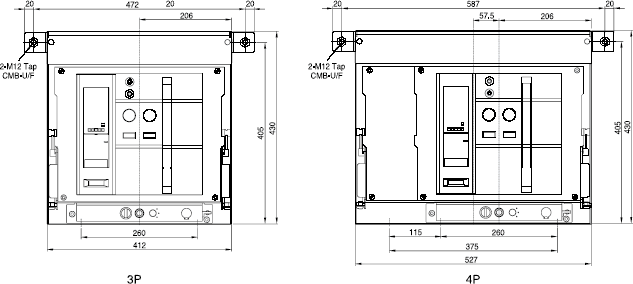

Front view

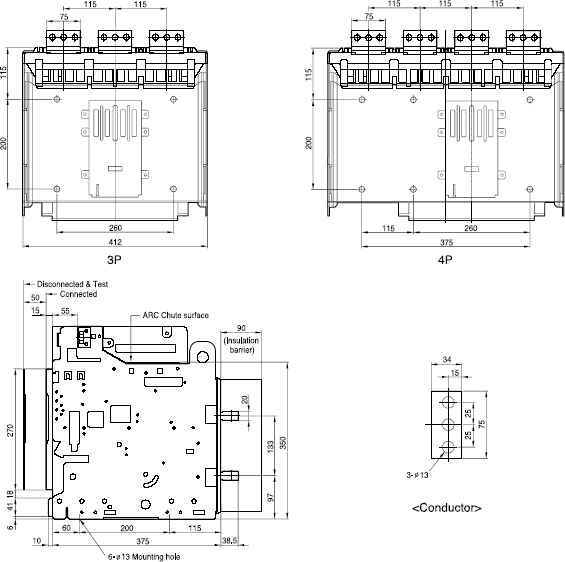

Vertical type

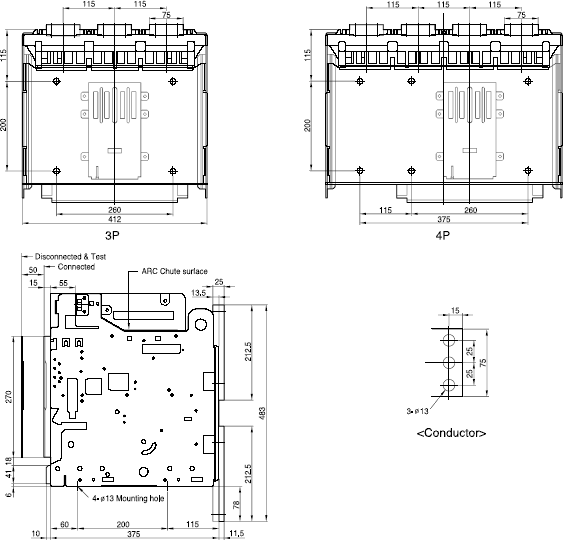

Horizontal type

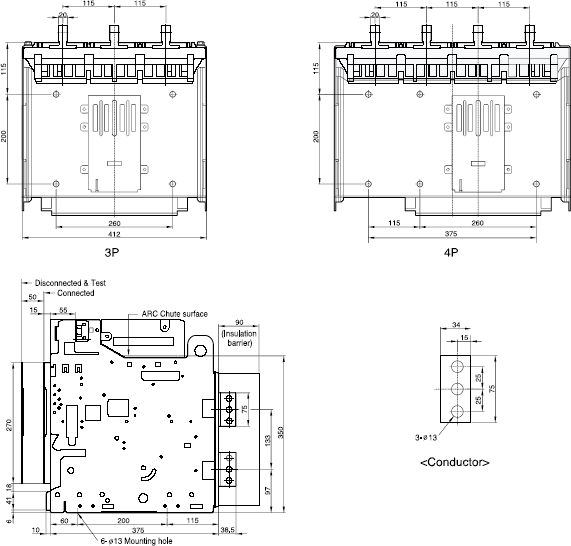

Front connection type
