Air Circuit Breakers : Dimensions : Draw-out type 2000AF ([630 — 1600A] AKH / AKN / AKS-06 — 16D)

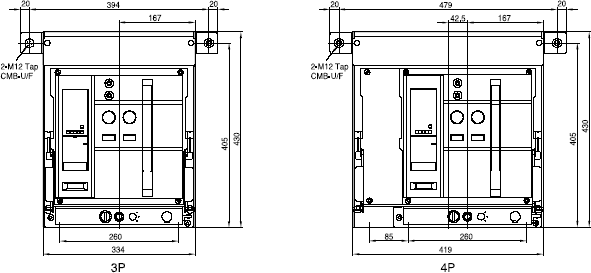

Front view

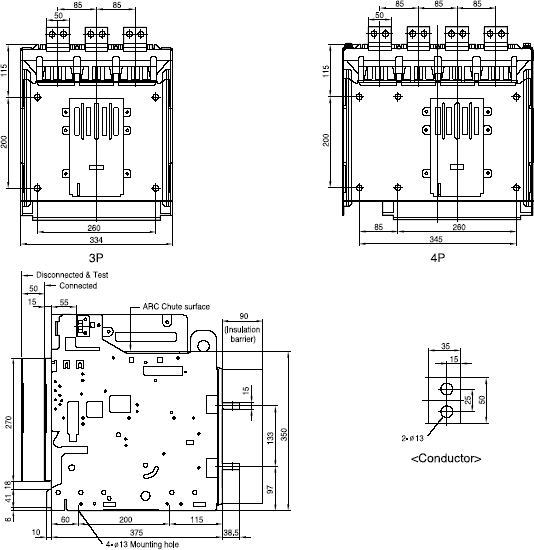

Vertical type

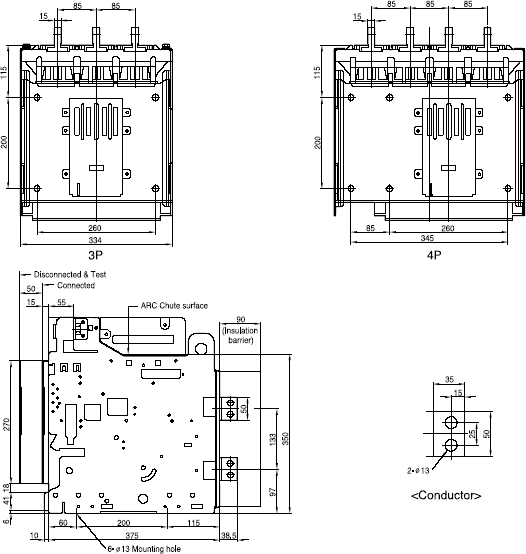

Horizontal type

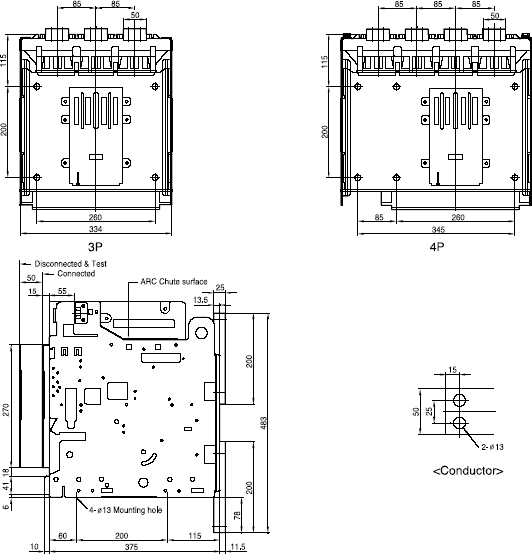

Front connection type
Close
