Air Circuit Breakers : Dimensions : Fixed type 2000AF ([630 — 1600A] AKH / AKN / AKS-06 — 16D)

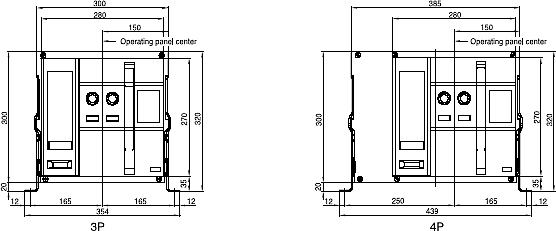

Front view

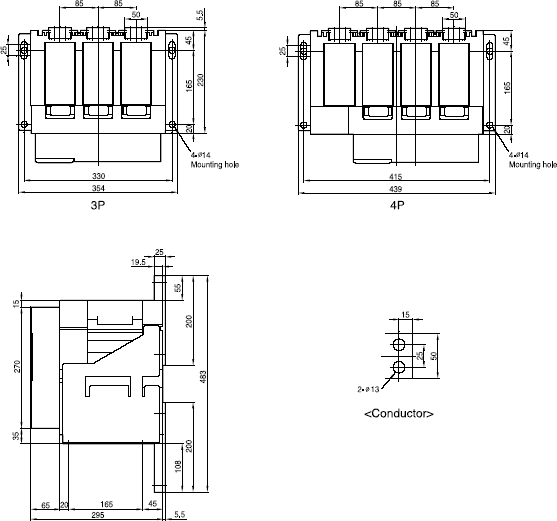

Vertical type

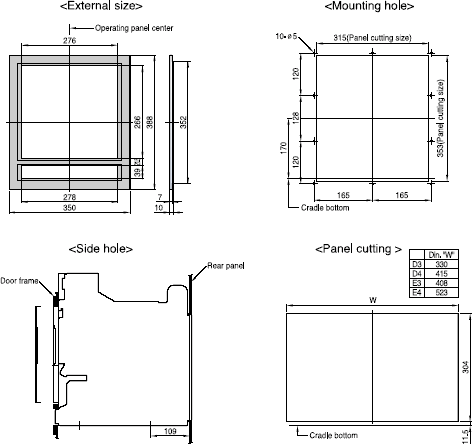

Door Frame : DF (AKH/AKN/AKS-D/E)

• Note) Operating voltage range is the min. rated voltage standard for each rated voltage (Vn).

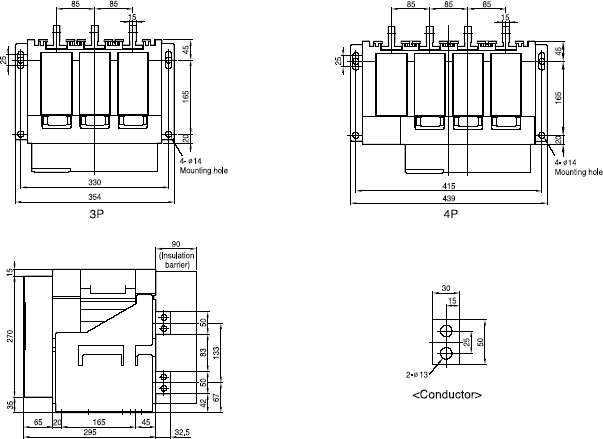

Horizontal type

Front connection type
