  • It gets a circuit breaker tripped electrically with regular time when control power supply is broken down and is used with Shunt coil, SHT. In case there is no DC power, It can be used as the rectifier which supplies DC power to a circuit breaker by rectifying AC power.
Ratings Specification
Model CTD-100 CTD-200
Rated input voltage(V) AC100/110 AC200/220
Frequency(Hz) 50/60 50/60
Rated charge voltage(V) 140/155 280/310
Charging time Within 5S Within 5S
Trip possible time Over 3 MIN Over 2 MIN
Range of Input voltage(%) 85–110 85–111
Condenser capacity 400µF 160µF

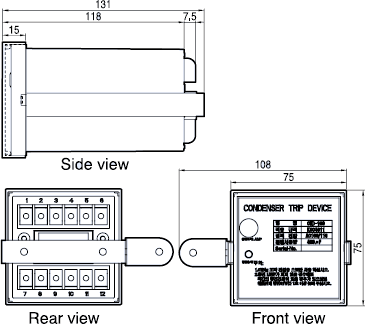

External dimension

Condenser Trip Device External dimension

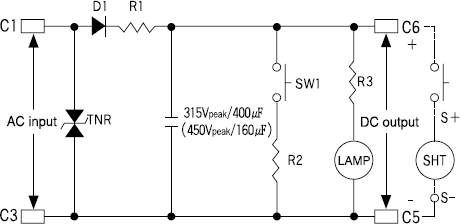

Circuit diagram

Condenser Trip Device Circuit diagram
