DC and AC digital input and output modules

8 / 16 pts. Input module (terminal block)

8 / 16 pts. Input module
(terminal block)

EH-XD8 : 8 pts. 24V DC
(Input lag 5ms max.)
EH-XD16 : 16 pts. 24V DC
(Input lag 5ms max.)
EH-XDL16 : 16 pts. 24V DC
(Input lag 16ms max.)
EH-XDS16 : 16 pts. 24V DC
(Input lag 1ms max.)
EH-XA16 : 16 pts. 100 to 120V AC
(Input lag 15ms max.)
EH-XAH16 : 16 pts. 200 to 240V AC
(Input lag 15ms max.)

8 / 16 pts. Output module (terminal block)

8 / 16 pts. Output module
(terminal block)

EH-YT8 : 8 pts. Transistor (sink)
EH-YTP8 : 8 pts. Transistor (source)
EH-YT16 : 16 pts. Transistor (sink)
EH-YTP16 : 16 pts. Transistor (source)
EH-YTP16S : 16 pts. Transistor
(source with short circuit protection)
EH-YS16 : 16 pts. Triac
EH-YR12 : 12 pts. Relay
EH-YR16 : 16 pts. Relay
EH-YR8B : 8 pts. Isolated relay
EH-YR16D : 16 pts. Relay
(2 common)

32 pts. Input module(connector)

32 pts. Input module
(connector)

EH-XD32 : 32 pts. 24V DC
(Input lag 5ms max.)
EH-XDL32 : 32 pts. 24V DC
(Input lag 15ms max.)
EH-XDS32 : 32 pts. 24V DC
(Input lag 1ms max.)

32 pts. Output module(connector)

32 pts. Output module
(connector)

EH-YT32 : 32 pts. Transistor (sink)
EH-YTP32 : 32 pts. Transistor (source)

64 pts. Input module(connector)

64 pts. Input module
(connector)

EH-XD64 : 64 pts. 24V DC
(Input lag 1ms max.)

64 pts. Output module(connector)

64 pts. Output module
(connector)

EH-YT64 : 64 pts. Transistor (sink)
EH-YTP64 : 64 pts. Transistor (source)

32 pts. Input module(Spring type terminal block)

32 pts. Input module
(Spring type terminal block)

EH-XD32E : 32 pts. 24V DC
(Input lag 5ms max.)
EH-XDL32E : 32 pts. 24V DC
(Input lag 16ms max.)

32 pts. Output module(Spring type terminal block)

32 pts. Output module
(Spring type terminal block)

EH-YT32E : 32 pts. Transistor (sink)
EH-YTP32E : 32 pts. Transistor (source)

Digital input and output modules

DC Input and DC Output modules

DC Input and DC Output modules

EH-XD32H : 32 pts. DC 24V input
(EM / H-200 compatible connector type)
EH-YT32H : 32 pts. DC 24V output
(EM / H-200 compatible connector type)

Analog input and output modules

Analog input and output modules

Analog Input module

EH-AX44 : 12-bit analog input, Current 4 to 20mA, Voltage 0 to 10V, 4ch each
EH-AX8V : 12-bit analog input, Voltage 0 to 10V, 8ch
EH-AX8H : 12-bit analog input, Voltage -10 to 10V, 8ch
EH-AX8I : 12-bit analog input, Current 4 to 20mA, 8ch
EH-AX8IO : 12-bit analog input, Current 0 to 22mA, 8ch
EH-AXH8M : 14-bit analog input, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 8ch
EH-AXG5M : 16-bit analog input, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 5ch Isolated

Analog Output module

EH-AY22 : 12-bit analog output, Current 4 to 20mA, Voltage 0 to 10V, 2ch each
EH-AY4V : 12-bit analog output, Voltage 0 to 10V, 4ch
EH-AY4H : 12-bit analog output, Voltage -10 to 10V, 4ch
EH-AY4I : 12-bit analog output, Current 4 to 20mA
EH-AY2H : 12-bit analog output, Voltage -10 to 10V, 2ch
EH-AYH8M : 14-bit analog output, Current 0 to 22mA / 4 to 22mA, Voltage 0 to 10V, 8ch
EH-AYG4M : 16-bit analog output, Current 0 to 22mA / 4 to 22mA, Voltage -10 to 10V / 0 to 10V, 4ch Isolated

Temperature Detective Input module

EH-PT4 : Signed 15-bit, Pt 100 / Pt 1,000, 4ch
EH-TC8 : Signed 15-bit, Thermo-couple (K, E, J, T, B, R, S, N) 8ch
EH-RTD8 : Signed 15-bit, Pt 100 / Pt 1,000, 6ch (3 wire) / 8ch (2 wire)

Counter modules

Counter modules

High speed counter module

EH-CU : Maximum 100kHz, 2ch
EH-CUE : Maximum 100kHz, 1ch

Communication and Network modules

Serial communication Module: EH-SIO

Serial communication Module: EH-SIO

Interface : RS-232C×1, RS-232C / 422 / 485×1
Communication mode : Half-duplex
Communication speed : 300-57, 600bps
Communication protocol : Non-protocol
Modbus-RTU master

PROFIBUS® DP V0 Master / Slave Controller

PROFIBUS® DP V0 Master / Slave Controller

Number of slave-connected units: Max. 125
(of which maximum 22 units are EH-IOCP2)
Communication speed Max. 12Mbps
Communication distance Max. 1,200m (Lower than 93.75kbps)
Input / Output data 512 words / 512 words

DeviceNet™ Master / Slave Controller

DeviceNet Master / Slave Controller

Number of slave-connected units: Max. 63
(of which maximum 22 units are EH-IOCD2)
Communication speed Max. 500Kbps
Communication distance Max. 500m (Lower than 125kbps)
Input / Output data 256 words / 256 words

EtherCAT® slave controller

EtherCAT®

  • 1,408 points for maximum input and output
    (analog input and output 176 ch)

    Users can create any configurations because of the coupler type. It can be also applied to the large-scale control system.

  • Passing down the I/O module assets of
    the EH-150 / EHV / EHV+ Series

    Power supplies, bases, and I/O modules (some are excluded) of the EH-150 / EHV / EHV+ Series can be used.

  • High-speed response and high reliability

    At the fastest pace, the communication cycle is 200 µs. When communication abnormalities occur, the output data can be retained.

EtherCAT® Slave Controller Specifications

Model
Items
Specifications
EH-IOCA
Communication
specifications
Communication protocol EtherCAT® dedicated protocol
Modulation method Baseband
Transmission speed 100Mbps
Physical layer 100BASE-TX (IEEE802.3)
Connector RJ45 (IN, OUT)
Topology Daisy chain
Communication cable Category 5 or higher STP cable
Communication distance Within 100m in distance between nodes (slaves)
Communication cycle 200 µs or higher*1
Node address range 1 to 99: Setting by the node address switch
1 to 65,535: Setting by EtherCAT® master
Process data Fixed PDO mapping
Mail box Support
Synchronous mode Free Run mode (asynchronous)
Output hold function Support (set by master)
Functional
specifications
Usable base EH-BS3A / 5A / 6A / 8A / 11A / 8R
Number of mounted modules Maximum 22 units per slave device
Input and output points 1,408 points for digital input and output, 176ch for analog input and output
Number of extendable stages 1 stage
Refresh time 500 µs fixed
Self-diagnostics WDT check
Error display LED
Consumption current 350mA
*1
The communication cycle depends on EtherCAT® master specifications.

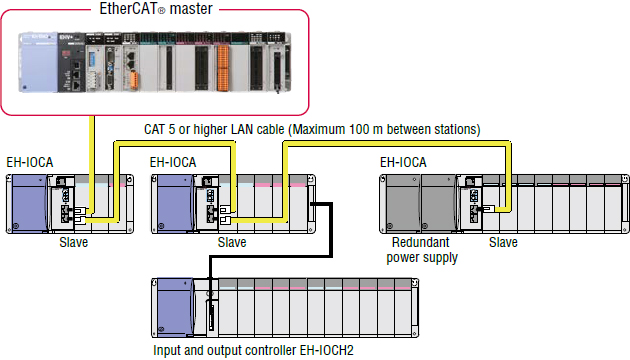

Configuration Example

Configuration Example
