Gear Motor

Hitachi Gear Motor Series Line-up

CA-Series

Motor : Gear Motor : CA-Series

Features

  • Small size and light weight
  • Low noise
  • Adopt double seal structure
  • Output range: 0.1kW～2.2kW
  • For even(light) lords
    Suitable to constant operation
    where less impact loads are applied

Application Examples

  • Food conveyor
  • Small package conveyor
  • Seat Shutter
  • Workpice feeder
  • Parking garage

GA-Series

Motor : Gear Motor : GA-Series

Features

  • Small size and light weight
  • Long life
  • Adopt double seal structure
  • Set-up High-efficiency motor is available
  • Output range: 0.4kW～11kW
  • For medium lords (General purposes)
    Suitable to medium impact loads.
    It can operate at least 10-hours/day when a constant loads or light impact loads are applied.

Application Examples

  • General purpose conveyor
  • Metal working machine
  • General machine tool
  • Feed plant machine

PB Series

Motor : Gear Motor : PB Series

Features

  • Long life
  • Easy layout for connect shaft
  • Middle output motor
    Output range: 11kW～55kW
  • Low revoluting speed motor
    Output range: 0.4kW～11kW

Application Examples

  • General purpose conveyor
  • Metal working machine
  • General machine tool
  • Feed plant machine

HA Series

Motor : Gear Motor : HA Series

Features

  • Toughness
  • Long life
  • Low noise
  • Adopt double seal structure
  • Output range: 0.4kW～3.7kW
  • For heavy loads, high frequency
    suitable to hard impact loads.
    It can operate at least 10-hours/day when the medium loads are applied.

Application Examples

  • Heavy duty conveyor
  • Rolling machine
  • Molding machine
  • Crusher

Model List

Grease leakage preventive seal having a life 10-times as long as the former one* is applied to the all models.

*Compared with out former seal

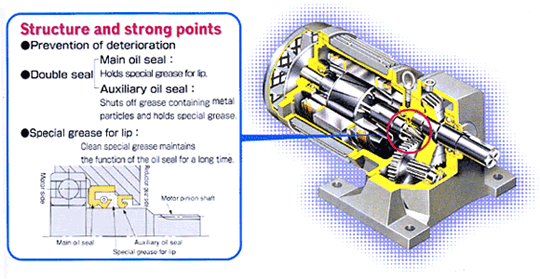

Structure and strong points

Grease is filled in the space between the lips of a unique double oil seal. The life of this oil seal has a life 10-times as long as our former grease seal for presenvation of the environment, reduction of the maintenance work, and reliability improvment.
