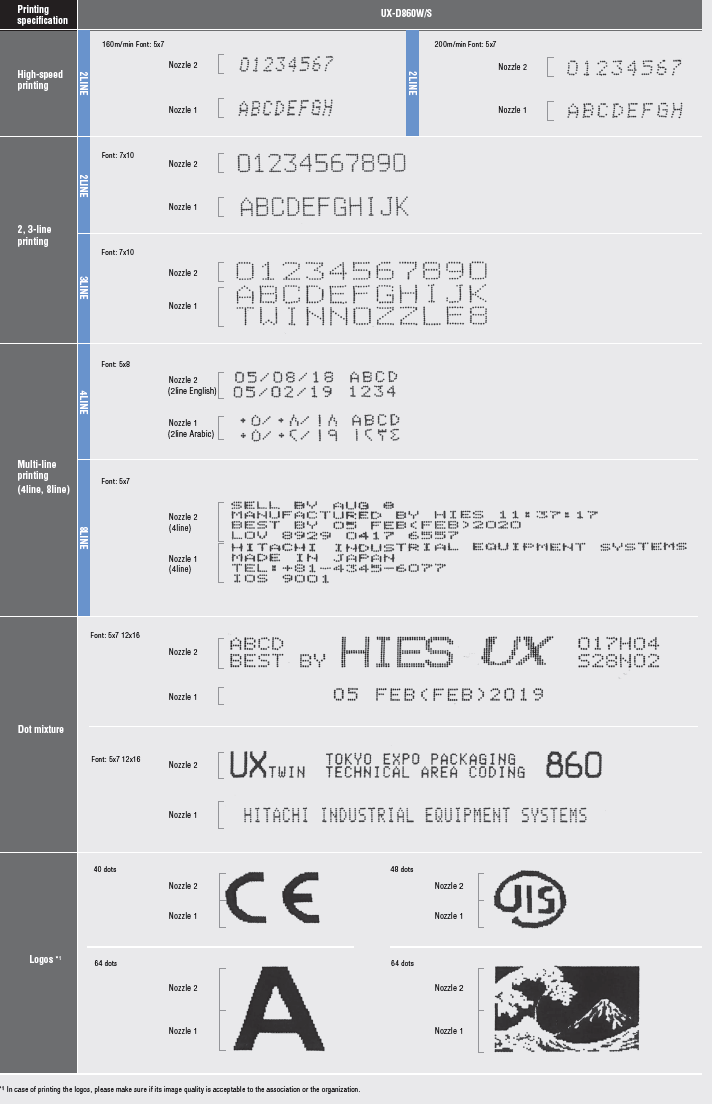

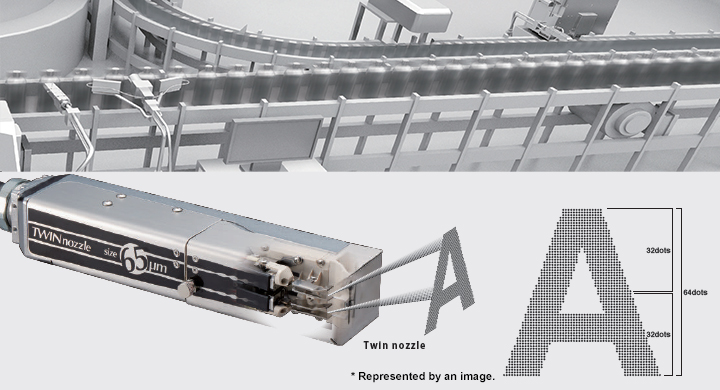

Versatile 64-Dots
Our innovative design can now produce 64 vertical dots of print resulting in large, bold characters. This makes our twin nozzle printer ideally suited to mark company logos or any other pattern previously unachievable with traditional print heads.
Higher print speeds
Having two nozzles on tap dramatically increases the speed of multi-line printing. Traditional, single nozzle print heads become taxed very quickly when printing multiple lines of print especially at speed. By sharing the work load between two separate nozzles, this effect is greatly reduced.
| Item | Model | |
|---|---|---|
| UX-D860W/S | ||
| Nozzle size | 65µm | |
| Maximum number of print lines | Up to 8 lines | |
| Maximum number of print characters | Up to 1,000 characters（Depends on print lines） | |
| Font (Horizontal × Vertical) |
4 × 5 | ✓ |
| 5 × 5 | ✓ | |
| 5 × 7(8), 9 × 7(8) | ✓ | |
| 7 × 10 | ✓ | |
| 11 × 11 | ✓(Special Kanji only) | |
| 10 × 12 | ✓ | |
| 12 × 16 | ✓ | |
| 18 × 24 | ✓ | |
| 24 × 32 | ✓ | |
| 30 × 40 | ✓ | |
| 36 × 48 | ✓ | |
| 48 ×64 | ✓ | |
| Character height | 2 - 21 mm (Depends on print distance, print speed and operating temperature) |
|
| Display & input device | WYSIWYG design Display: TFT LCD (10.4" color), backlight provided Input device: Touch panel, input sound provided |
|
| Screen language (2 languages selectable) |
English, Special Kanji, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian, Slovenian | |
| Maximum print rate | Up to 4,592 (Characters per second) (Font 5×5, space 1, 2 line) |
|
| Standard characters | Alphanumeric（A-Z, a-z, 0-9）, symbols (27) and space: Total 90 | |
| User patterns | 200 patterns each for dot matrix (50 patterns for 30×40, 36×48, 48×64 fonts) | |
| Print functions | Calendar, Count, Font mixture | |

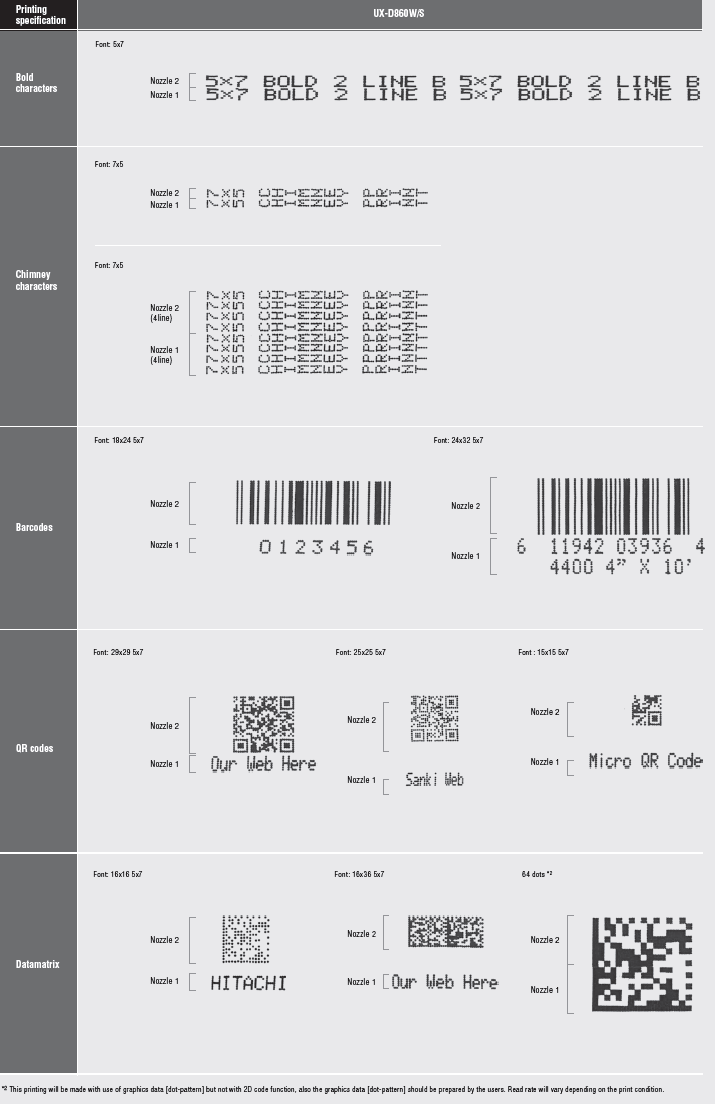

| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar | |
| 2D code printing | Data Matrix (Alphabet: 49 characters/Numerals: 98 characters), QR code, Micro QR code | |
| Message storage capacity | Up to 2,000 messages (Depends on data content) | |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON / OFF, Reset), (NPN / PNP Selectable) |
|
| Output signal | Print in progress or Print complete, Online (NPN / PNP Selectable), Print ready, Fault, Warning (NPN Only) | |
| Data interface | RS-232C at baud rates selectable up to 115,200bps | |
| Ethernet (Modbus communication) | IEEE802.3, 100BASE-T | |
| External memory | USB for user data storage | |
| Printhead cable length / angle | 4m (in-line/90 degrees) | |
| Operating temperature range | 0-45℃ (1067K Ink) | |
| Operating humidity range | 30-90% RH (no condensation) | |
| Power supply (Automatic voltage selection) | AC100-120/220-240V±10% 50/60Hz 150VA | |
| Approval | CE, UL, cUL, RCM, FCC, ICES | |

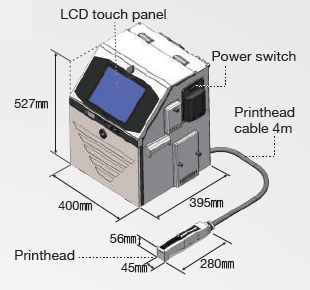

| Dimensions (Width × Depth × Height) | 400 × 395 × 527 mm | |
| International protection | IP55（Printhead is excluded） | |
| Approximate weight | 34kg | |
