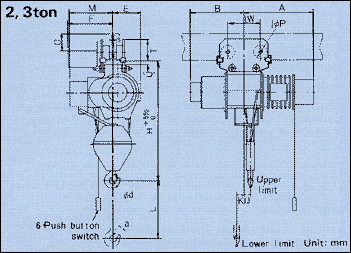

Dimensions : Standard Headroom Type : 2, 3 ton

Model 2M-T75 2HM-T75 3M-T65 3HM-T65
Hoist type 2M7 2HM7 3M6 3HM6
Trolley type 2T5 2T5 3T5 3T5
Capacity(ton) 2 3
Approx.dimensions
(mm)
L 6,000 12,000 6,000 12,000
H 985 1,115
A 595 630 645 690
B 435 615 475 660
M 415 460
W 200/290 230/310
K 30 110 35 120
J 75 100 80 110
Ød 56 71
Øp 96 128
a 36 42
Min. curve Radius(m) 1.8 2.0
Dimensions with
Respect to l-beam(mm)
E F S T U C E F S T U C
(150 × 75 × 5.5)
200 × 100 × 7 220 378 42 148 42 135
250 × 125 × 7.5 220 391 67 151 39 185 245 417 52 177 38 180
300 × 150 × 11.5 220 404 92 160 30 225 245 430 77 187 28 220
450 × 175 × 11             245 443 102 185 30 370
Approx.weight(kg) 280 310 385 415

Note

*1
Dimensions W are for the drive side/driven side.
*2
Unless otherwise specified, trolley is being assembled so as to meet smudged I-beam size.
