HOIST WITH MOTORIZED TROLLEY
| Model | 15D-T55 | 15HD-T55 | 20HD-T55 | |
|---|---|---|---|---|
| Hoist type | 15D5 | 15HD5 | 20HD5 | |
| Trolley type | 10DT5 | 15DT5 | 20DT5 | |
| Capacity(ton) | 15 | 20 | ||

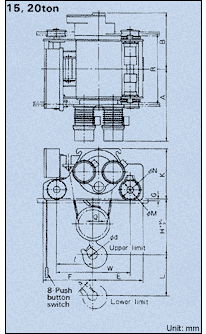

| Approx. dimensions (mm) | L | 8,000 | 12,000 | 12,000 |
| H | 785 | 930 | ||
| K | 730 | 730 | ||
| R | 1,000 | 1,200 | 13,000 | |
| F | 700 | 700 | ||
| E | 740 | 740 | ||
| W | 1,040 | 1,040 | ||
| A | 1,060 | 1,160 | 1,210 | |
| B | 750 | 850 | 900 | |
| Ød | 130 | 165 | ||
| Q | 89 | 91 | ||
| ØM | 250 | 250 | ||
| ØN | 282 | 282 | ||
| G | 28 | 28 | ||
| a | 86 | 108 | ||
 |
505 | 505 | ||
| Rail (mm) | 55 square steel bar or 22 kg rail | |||
| Weed tread width (mm) | 66 | 66 | ||
| Approx. weight (kg) | 2,150 | 2,250 | 2,450 | |
