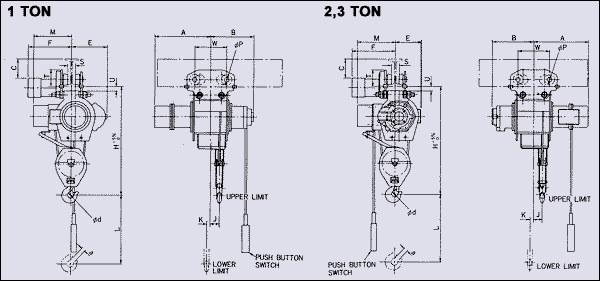

Dimensions : Standard Headroom Type : With Motorized Trolley

Model 1AM-T65 1HAM-T65 2AM-T75 2HAM-T75 3AM-T65 3HAM-T65
Hoist type 1AM6 1HAM6 2AM7 2HAM7 3AM6 3HAM6
Trolley type 1T5 1T5 2T5 2T5 3T5 3T5
Capacity(ton) 1 2 3
Approx. dimensions (mm) L 6,000 12,000 6,000 12,000 6,000 12,000
H 790 985 1,115
A 480 650 545 580 565 605
B 350 385 435 615 460 640
M 345 400 460
W 200/390 200/290 230/310
K 20 90 30 110 35 120
J 85 115 75 100 80 110
E 255 220 245
Ød 45 56 71
Øp 96 96 128
a 23 36 42
Min.curve   radius(m) 1.5 1.8 2.0
I-beam/Dimensions(mm) F S T U C F S T U C F S T U C
200 × 100 × 7 374 42 148 47
(42)
135 378 42 148 42 135
250 × 125 × 7.5 387 67 151 44
(39)
185 391 67 151 39 185 417 52 177 38 180
;300 × 150 × 11.5 400 92 160 35
(30)
225 404 92 160 30 225 430 77 187 28 220
450 × 175 × 11       35
(30)
            443 102 185 30 370
Approx. weight (kg) 165 175 255 275 320 345
Push-button
indication
Push buttonPush buttonPush buttonPush buttonPush buttonPush button

Note

*1
Dimensions W are for the drive side/driven side.
*2
Unless other wise specified, trolley is being assembled so as to meet smudged I-beam size.
*3
( ) dimensions represent dimensions of 1HAM6 (Hoist type).
