SINGLE SPEED

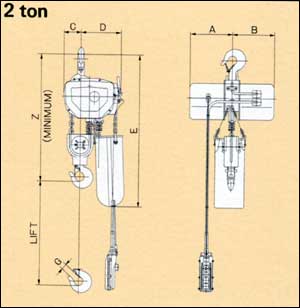

| Model Name | 2S | 2SH | |
|---|---|---|---|
| Rated Load | 2t | ||
| Dimension(mm) | Z | 645 | |
| A | 216 | ||
| B | 216 | ||
| C | 90 | ||
| D | 215 | ||
| E | 705 | 775 | |
| G | 26 | ||
| Approx. Weight (kg) | 49 | 59 | |
DUAL SPEED
| Model Name | 2SN | 2SNH | |
|---|---|---|---|
| Rated Load | 2t | ||
| Dimension(mm) | Z | 645 | |
| A | 216 | ||
| B | 246 | ||
| C | 90 | ||
| D | 215 | ||
| E | 705 | 775 | |
| G | 26 | ||
| Approx. Weight (kg) | 54 | 64 | |
SINGLE PHASE MODEL
| Model Name | 2S1 | 2SH1 | |
|---|---|---|---|
| Rated Load | 2t | ||
| Dimension(mm) | Z | 645 | |
| A | 246 | ||
| B | 246 | ||
| C | 90 | ||
| D | 215 | ||
| E | 705 | 775 | |
| G | 26 | ||
| Approx. Weight (kg) | 51 | 61 | |
