SINGLE SPEED
| Model Name | 1S | 1SH | |
|---|---|---|---|
| Rated Load | 1t | ||

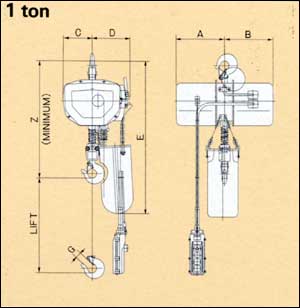

| Dimension(mm) | Z | 530 | |
| A | 216 | ||
| B | 216 | ||
| C | 135 | ||
| D | 170 | ||
| E | 680 | ||
| G | 23 | ||
| Approx. Weight (kg) | 37 | 42 | |
DUAL SPEED
| Model Name | 1SN | 1SNH | |
|---|---|---|---|
| Rated Load | 1t | ||
| Dimension(mm) | Z | 530 | |
| A | 216 | ||
| B | 246 | ||
| C | 135 | ||
| D | 170 | ||
| E | 680 | ||
| G | 23 | ||
| Approx. Weight (kg) | 42 | 47 | |
SINGLE PHASE MODEL
| Model Name | 1S1 | 1SH1 | |
|---|---|---|---|
| Rated Load | 1t | ||
| Dimension(mm) | Z | 530 | |
| A | 246 | ||
| B | 246 | ||
| C | 135 | ||
| D | 170 | ||
| E | 680 | ||
| G | 23 | ||
| Approx. Weight (kg) | 39 | 44 | |
