SINGLE SPEED
| Model Name | 1/4S2 | 1/4SH2 | 1/2S2 | 1/2SH2 | |
|---|---|---|---|---|---|
| Rated Load | 250kg | 500kg | |||

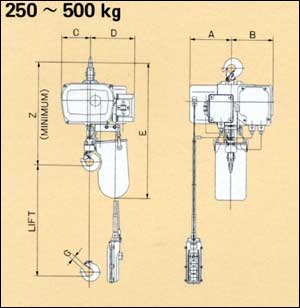

| Dimension(mm) | Z | 450 | 450 | ||
| A | 181 | 181 | |||
| B | 186 | 184 | |||
| C | 125 | 125 | |||
| D | 200 | 200 | |||
| E | 620 | 620 | |||
| G | 19 | 19 | |||
| Approx. Weight (kg) | 28 | 31 | 31 | 34 | |
DUAL SPEED
| Model Name | 1/4SN2 | 1/4SNH2 | 1/2SN2 | 1/2SNH2 | |
|---|---|---|---|---|---|
| Rated Load | 250kg | 500kg | |||
| Dimension(mm) | Z | 450 | 450 | ||
| A | 183 | 183 | |||
| B | 210 | 210 | |||
| C | 125 | 125 | |||
| D | 200 | 200 | |||
| E | 620 | 620 | |||
| G | 19 | 19 | |||
| Approx. Weight (kg) | 33 | 36 | 36 | 39 | |
SINGLE PHASE MODEL
| Model Name | 1/4SS2 | 1/4SSH2 | 1/2SS2 | 1/2SSH2 | |
|---|---|---|---|---|---|
| Rated Load | 250kg | 500kg | |||
| Dimension(mm) | Z | 450 | 450 | ||
| A | 181 | 181 | |||
| B | 210 | 210 | |||
| C | 125 | 125 | |||
| D | 200 | 200 | |||
| E | 620 | 620 | |||
| G | 19 | 19 | |||
| Approx. Weight (kg) | 33 | 36 | 34 | 37 | |
